FEEDERS

FRICTION FEEDERS

V-1400IJ

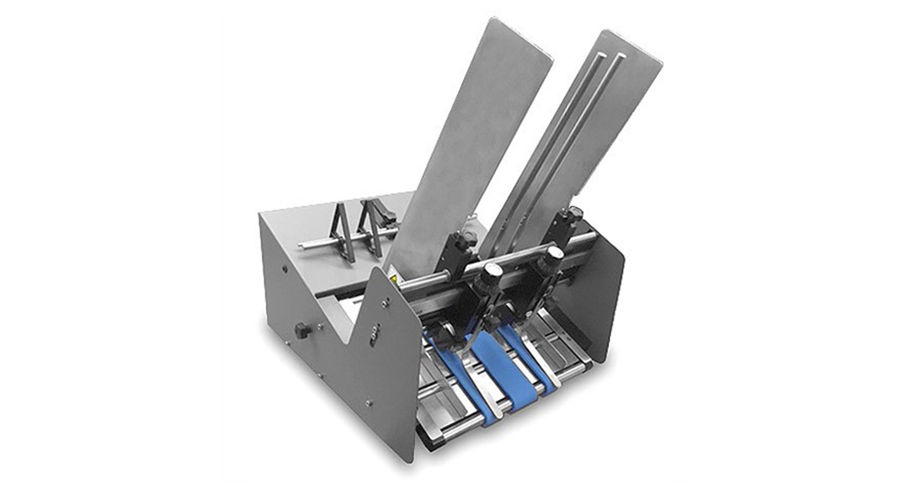

V-1400IJ INKJET SERIES FEEDER

V1400IJ FEEDS PRODUCTS AT HIGH SPEED WITH EXCEPTIONAL ALIGNMENT QUALITIES
V1400IJ is capable of feeding flat and multi-thickness products into mail production streams including inkjet and tabber systems, consistently at high speeds with exceptional alignment qualities.

EASY AND TOOL-LESS ADJUST
V1400IJ  features quick and tool-less setup, quick make-ready, and easy maintenance.
Patented tool-less side guide adjust
Repositionable feed belts with tool-less adjust
Adjustable product support rods
Moveable separators
Extended guides all the way through the feeder to keep products straight

TECHNICAL DETAILS

Max product size (WxL): 355 x 457 mm

Min product size (WxL): 63.5 x 76.2 mm

Product Thickness: 0.076-25.4 mm

Belt speed / Feeding speed: Max. 198 m/min

Power supply: 115/230 VAC, 50/60Hz, 3A

Dimensions (LxWxH): 397 x 504.19 x 533.4 mm

Weight: 21.32 Kg

Complies to: CE directives

FEATURES

COMPLETE MAILING SYSTEMS WITH HSA SYSTEMS MAILTABLE AND CONVEYORS

The feeders can easily be integrated on an HSA Systems mailtable or conveyor for a complete mailing system.



FEED A WIDE VARIETY OF FLAT AND MULTI-THICKNESS PRODUCTS INCLUDING:

  • Sheet Paper

  • Coupons

  • Backer Board

  • Folded Documents

  • Manuals

  • Flat Cartons

  • Folders

  • Cardstock

  • Envelopes

  • Booklets

  • Post Cards

  • Brochures

  • Perfect bound magazines

  • Saddle-stitched magazines

  • and much more

OVER 20 YEARS EXPERIENCE

Contact us about our innovative solutions.
