Mini Friction Feeder with TIJ Printer

mini Feeder with TIJ Printer

Compact Sheet & Product Feeding Solution for Printing and Labeling

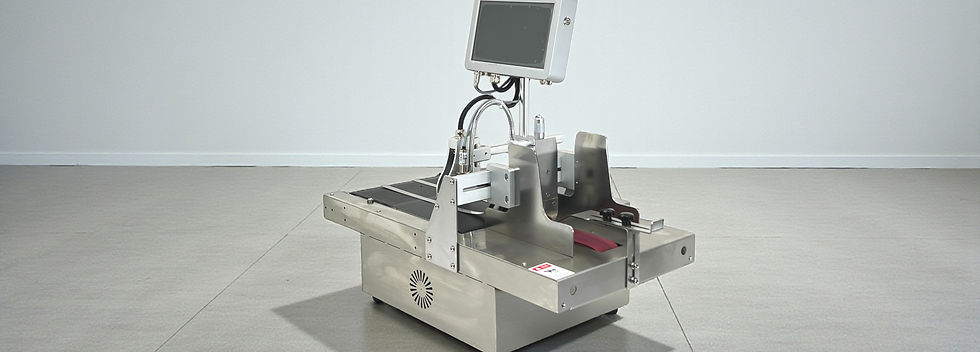

The Mini Friction Feeder with TIJ Printer is a compact desktop feeding system designed to automatically separate and feed stacked products into printing or labeling processes.

Using friction-based separation, the feeder accurately feeds sheets, paper cards, sachets, pouches, cartons, or flat products one by one, ensuring stable and consistent operation.

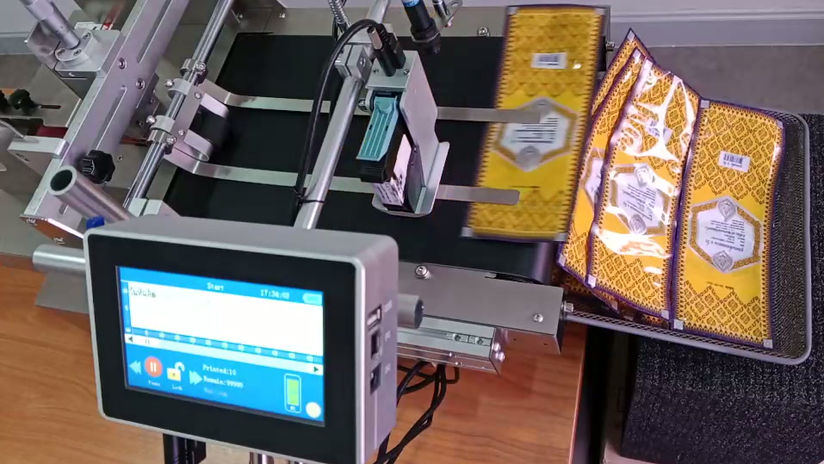

Integrated with a Thermal Inkjet (TIJ) Printer, the system allows high-resolution printing of production dates, expiration dates, lot numbers, barcodes, QR codes, and logos directly on products during feeding.

Key Features & Benefits

Compact desktop design – ideal for limited production space
Automatic product separation – consistent single-piece feeding
Adjustable guides – supports various sizes and thicknesses
Seamless TIJ printer integration – high-resolution variable data printing
Reduces manual labor – frees operators from repetitive tasks
Improves efficiency & accuracy – stable feeding for reliable printing results

Typical Applications

Packaging and printing lines
Pharmaceutical and medical product feeding
Food, cosmetic, and sachet printing
Card, label, and flat product handling
SME and small-batch production lines

Why Choose a Desktop Friction Feeder

Compared to large conveyor systems, the desktop friction feeder offers:

Easier installation
Lower investment cost
Flexible integration with existing production lines
Ideal solution for SMEs and growing businesses

Technical Specifications

Model: P09
Power: 120W
Maximum Speed: 100 m/min
Speed Range: 300–3000 r/min
Voltage / Frequency: AC 220V, 50Hz
Dimensions (L×W×H): 68 × 39.5 × 39 cm
Net Weight: 22 kg
Material: 201 Stainless Steel
Applicable Thickness: 0.1–6 mm
Applicable Products: Paper cards, cartons, food bags, aluminum foil bags, plastic bags, inner boxes
