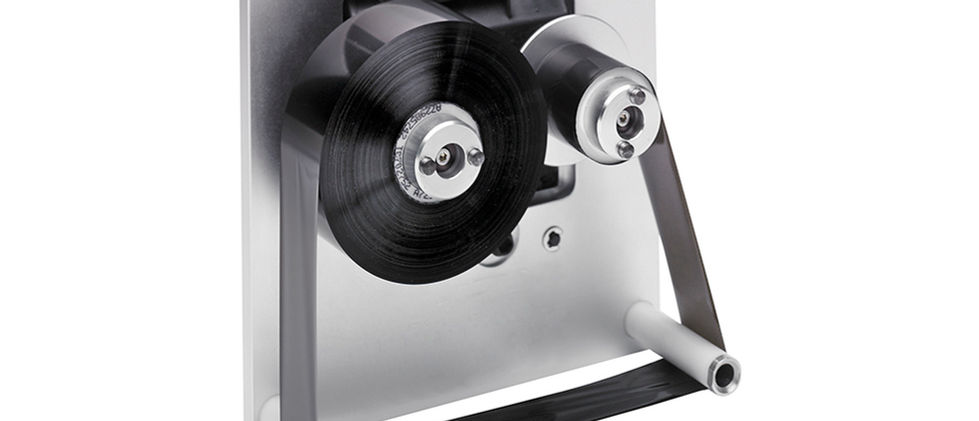

LINX TT3

33mm ribbon width for basic batch code applications.

The Linx TT3 is a simple printer designed for simple date and batch coding onto flexible materials including bags, pouches and flow wrap, ideal when coding areas of 32mm x 30mm. Easy to use, maximum ribbon economy, minimum fuss.


Key benefits

  • An efficient ribbon drive brings wastage to an absolute minimum

  • Simple ribbon cassette for quick changeovers

  • Easy to use color touch screen - fewer errors and hassle-free operation

  • Optimized ribbon economy for lowest running costs

  • High-resolution 300dpi printhead for optimum legibility of even the smallest characters

  • The clutchless ribbon drive to minimize the risk of ribbon breaks

  • Exceptional flexibility - switch between intermittent and continuous printing modes

  • Exceptional flexibility - switch between intermittent and continuous printing modes

  • WYSIWYG interface for simple and error-free message creation

Technical Specifications

Programming features

  • Coder supplied with a range of standard code templates

  • CLARiSOFT for TT3 code design software

  • Auto best before date calculations

  • Flexible date/time formats

  • Scaleable text including rotation, mirror and inverse printing

  • WYSIWYG print preview
    3 levels of password protection

Physical characteristics

  • The clutchless bi-directional ribbon drive

  • Full-color touch screen

  • Standard bracket systems for integrating coder into intermittent and continuous motion packaging machinery

Printing capability

  • Ribbon width of 22mm or 33mm

  • Message area – 32mm (w) x 30mm (l)

  • Maximum ribbon length – 600m

  • Print speed: intermittent motion mode - 50mm/sec to 200mm/sec

  • Print speed: continuous motion mode - 40mm/sec to 500mm/sec

  • Ribbon colors – black, metallic white (other colors on request)
