HAWKVIS

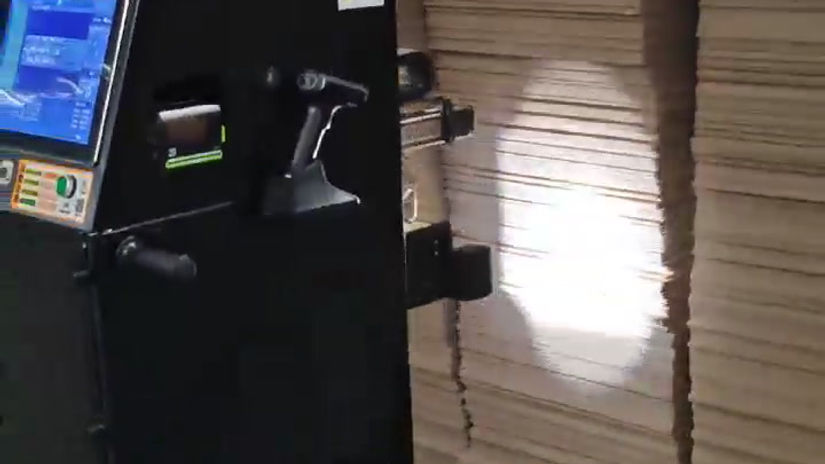

Corrugated Sheet Counter Machine

Model No. R105

Introduction

This counter machine is self-developed by Hawkvis, adopting advanced industrial CCD cameras and intelligent counting algorithms based on deep learning technology. It scans the corrugated side of each stack, recognizes the boards, and counts them quickly and accurately.

Industry’s Pain points

  • Corrugated sheet boards are sold by quantity, so an accurate number is essential.

  • Quantity discrepancies can occur during production, warehousing, and transportation, making them difficult to trace. As a result, producers often have to bear the loss.

  • Using human workers to count the number of sheets in each stack before shipment is inefficient and costly. Machine counting offers a better solution.

corrugate sheeting couting machine_2.jpg
corrugate sheeting couting machine_3.jpg

Installation Locations

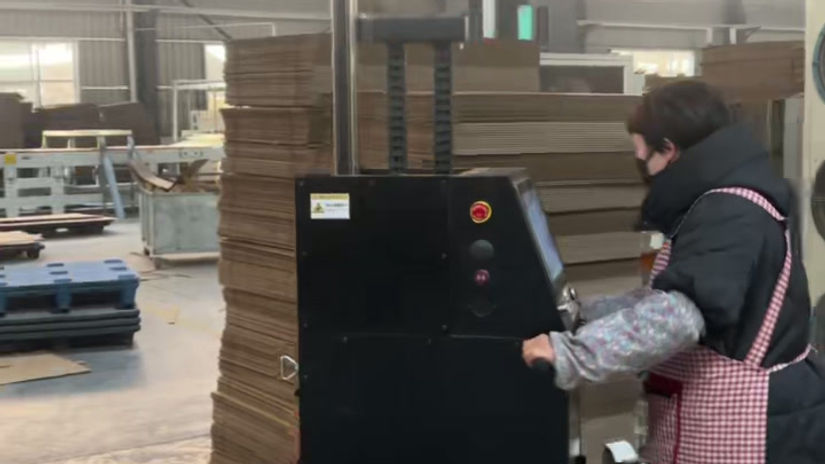

  • Board Plant- at the end of the production line

corrugate sheeting couting machine_4.jpg

  • Box plant-Warehouse

corrugate sheeting couting machine_5.jpg

  • Board Plant-Shipment dock

corrugate sheeting couting machine_6.jpg

Functions and Features

System Features​

  • Smart algorithms, high recognition rate, and high counting accuracy.

  • Customize the menu of board flute types as per the client's production.

  • Simply press the flute type on the touchscreen, and it automatically counts.

  • Multiple-array counting: To count multiple arrays in the same stack. (*depending on the stack situation)

  • Virtual stack: will show a red alarm when the system detects any serious misalignment & blocking of flutes.

  • Generate a counting report for checking and sharing.

  • Barcode scanner allows scanning the barcode on the client P.O. and inputting relevant information.

  • Includes a label printer to print the counting result automatically after each counting.

​

corrugate sheeting couting machine_7.jpg

Applicable board types​

  • The machine can count all standard flute types and can be customized for special flute profiles.

  •  Only F- and G-flutes are too thin, making them more susceptible to blockage from misalignment, which can affect counting accuracy.​

corrugate sheeting couting machine_8.jpg

Technical Advantages​

  • Misalignment of boards is inevitable. If severe, it can affect image capture and reduce counting accuracy.

  • Hawkvis has made improvements in image acquisition and algorithm recognition. As long as the flutes are visible, they can be accurately counted.​

Anti Damages & Foreign Objects​

  • Occasional damage and foreign objects on the stack side can affect counting accuracy.

  • Hawkvis adopts a wide-field and multi-search mode to overcome interference from damage and foreign objects, ensuring counting accuracy.

corrugate sheeting couting machine_9.jpg
corrugate sheeting couting machine_10.jpg
Main Specification
Item
Model No.
Dimension (mm)
Installation Location
Maximum stack height (mm)
Focal Length (mm)
Counting Accuracy
Cycle time (s)
Hawkvis Counting software
Operation Media
Power supply (AC)
Rated Power (KW)
Enclosure Material
Weight (Kg)
Work Environment
Parameter

R105
2640*990*630
End of production line, shipment dock, warehouse
2300
400 - 800
In average >99.7%    For well stacked sheets = 100%
<12 sec. (for E flute, it is <14 sec.)
V1.1
Touch Screen
AC220V
3.5
Stainless Steel
70 Kg
Temperature 10 - 40 °C Humidity 30% - 95%

Main Specification

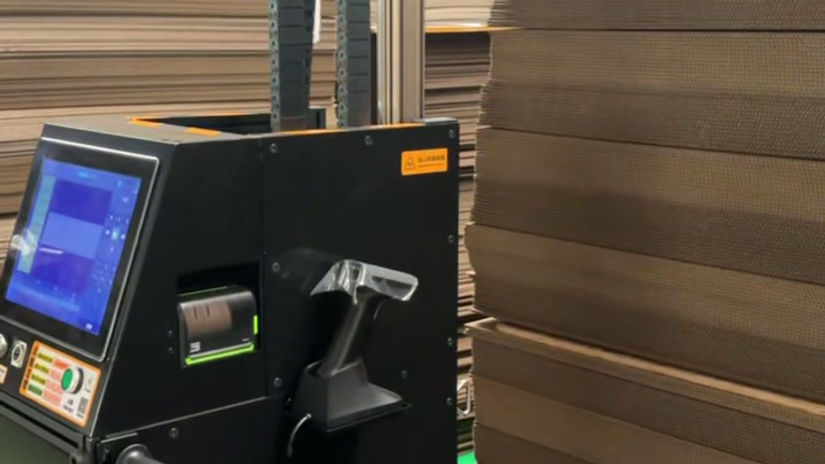

  • Alongside the conveyor
corrugate sheeting couting machine_11.jpg
  • In warehouse
corrugate sheeting couting machine_12.jpg
