APPLICATOR S1000

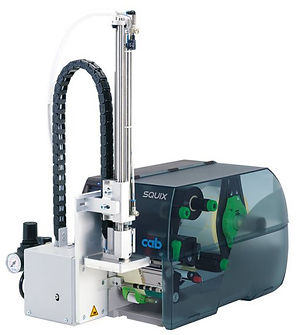

A S1000 assembled to a SQUIX peel-off printer provides a cost-effective solution if operated semi-automatically or integrated in a vertical orientation in production lines. A stroke cylinder applies the labels to products.


Applicator

S1000-220

To be used with

SQUIX 2, SQUIX 4.3, SQUIX 4, SQUIX 4.3 M, SQUIX 4 M, SQUIX 6.3

Cylinder stroke mm

Pad stroke below device mm

220

S1000-300

S1000-400

300

400

220

300

400

Compressed air bar

4.5

Cycle rate labels/min approx

25

APPLICATOR S3200

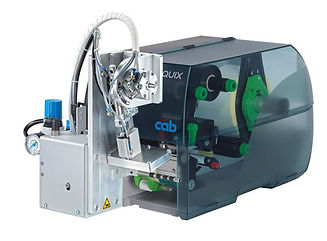

A S3200 assembled to a SQUIX peel-off printer provides a cost-effective solution if operated semi-automatically or integrated into production lines. Printed labels are applied to products automatically. For this purpose, labels are set 45° to 95° to the horizontal by a rotary cylinder and move towards products by means of a short-stroke cylinder.

In terms of service life, pre-dispense, compressed air regulation, process reliability, and supporting air, data correspond to the S1000 applicator.


Applicator

To be used with

S3200

SQUIX 2, SQUIX 4.3, SQUIX 4,

SQUIX 4.3 M, SQUIX 4 M

Rotary cylinder

Stroke cylinder up to mm

Immersion depth pad F up to mm

5

Compressed air bar

4.5

Cycle time labels/min approx.

20

45°- 90°

30

SQUIX APPLICATORS

Demand modules S5104, S5106

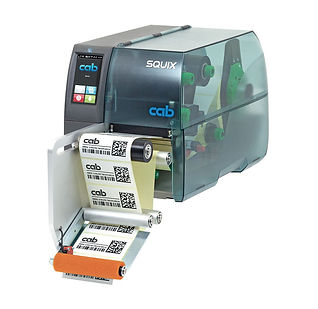

label products in motion on a conveyor. Positions are detected by a product sensor. As soon as peel-off has been triggered, the next label is printed. The speed of a product on the conveyor must adapt to the print speed. A reflective sensor detects positions.


Applicator

S5104

S5106

To be used with

SQUIX 6.3

SQUIX 4.3, SQUIX 4

Label width mm

50-176

25-116

Label height mm

25-210

Print line distance to the peel-off plate mm

336-518

Product surface

flat

Product height

fixed

State of a product during labeling

in motion, speed adapted to the printer

Cycle rate labels/min approx.

60
